Oil Skimmer
We are engaged in offering a very class apart Oil Skimmer. To remove tree floating tramp oil, Hydraulic oil, Animal Fat or alomost any floating hydrocarbons from effluent. Waste water, CNC machine coolant etc.
Advantage of Oil Skimmer
Helps to meet polluction control Norms- Reducess coat of disposal
- Increases machine coolant lite
- possibility of reuse.recycle of skimmed oil
- Enhances lite of mambrances
- Reduces dependence on manpower

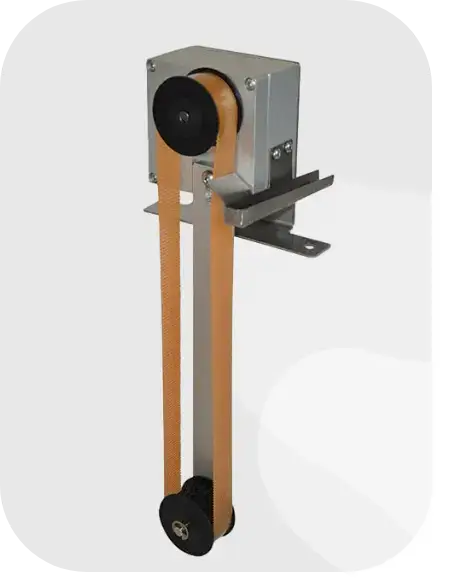

Mini Type Oil Skimmer
The Mini belt oil skimmer is an ultra-compact belt oil skimmer designed for use in coolant sump applications. The skimmer can fit in tight spaces whare other skimmers cant.
Standard Features
- Long lasting quiet 24ovot. 50hz motor
- Polyurethane and stainless streel belts available
- Tetherad tail pulley
- 8th and 12the lengths available
- Tiny foot print. Required little mounting space
- No assembly required
| Specification | Details |
|---|---|
| BELT MATERIAL | POLYTHRIEN & SS |
| TYPE OF BELT | TIMING BELT |
| MOTOR & GEARBOX | 20 RPM |
| VOLTS | 12V 230W |
| BELT LENGTH & WITH | 650, 945, 1150(50) |
| WEIGHT APP | 3Kg APP |
| OIL LPH APP | 6 LPH |

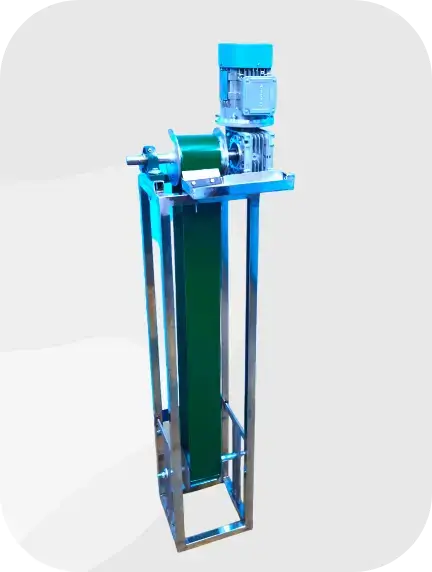

Single Belt Type Oil Skimmer
We are engaged in offering a very class apart Oil Skimmer. This skimmer is used for removing un-emulsified oil. It finds application in steel grinding, cast iron grinding, etc. Our range is known for its highly excellent quality and available at market's reasonable rate.
| Specification | Details |
|---|---|
| BELT MATERIAL | POLYTHRIEN & SS |
| TYPE OF BELT | TIMING BELT & CONVER BELT |
| MOTOR & GEARBOX | 0.5HP 20 RPM |
| VOLTS | 12V 230W |
| BELT LENGTH & WITH | 1,1.5,2,3, METER & 4” |
| WEIGHT APP | 20Kg APP |
| OIL LPH APP | 20 LPH |
Multi Belt Type Oil Skimmer
| Specification | Double belt Details | Triple belt Details |
|---|---|---|
| BELT MATERIAL | POLYTHRIEN & SS | POLYTHRIEN & SS |
| TYPE OF BELT | TIMING BELT & CONVER BELT | TIMING BELT & CONVER BELT |
| MOTOR & GEARBOX | 0.5HP 20 RPM | 0.5HP 20 RPM |
| VOLTS | 12V 230W | 12V 230W |
| BELT LENGTH & WITH | 1,1.5,2,3, METER & 4” | 1,1.5,2,3, METER & 4” |
| WEIGHT APP | 20Kg APP | 20Kg APP |
| OIL LPH APP | 20 LPH | 20 LPH |

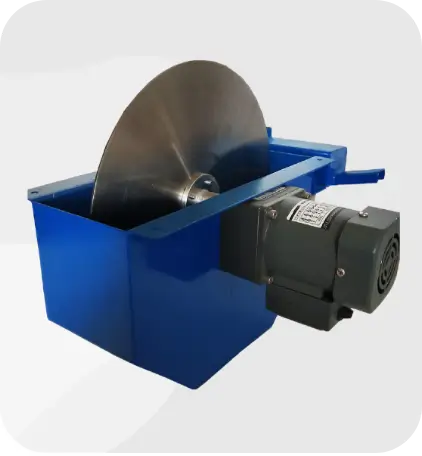

Disk Type Oil Skimmer
The inexpensive way to remove unwanted trampoils from coolats with all the quality that you expect from
- durable engineerd polymer houding won't corrode
- capped troughs prevent oil drips
- Boomerang Blades wope more oil off disk
- Shaft is sealed to prevent premature motor wear from oil contamination
Disk tupe oil skimmer with 1/2x12" Disk add 204v Fan cooled gear moto disk skimmer is constructed entirely of plastic and features plastic motor housing and frame.
| MATERIAL | MOTOR & RPM | VOLTS | DISK SIZE | WEIGHT | OIL LPH APP |
|---|---|---|---|---|---|
| SS,NYLON,ALUMINIUM | 05 RPM | 12V 230W | 1 FEET | 3Kg APP | 12 LPH |
| SS,NYLON,ALUMINIUM | 0.5HP 10 RPM | 12V 230W | 2 FEET | 20Kg APP | 25 LPH |
